United States · Numismatics

American Silver Eagle (1986–2026)

On 9 July 1985 Congress authorized a coin of one troy ounce of fine silver, with Liberty on the obverse and an eagle on the reverse. The United States Mint first struck it in 1986 and still strikes it in 2026. This page is that series case: each piece in the collection will be published here.

The act of 1985

The silver and the gold did not come from the same act. Title II of Public Law 99-61, signed on 9 July 1985 and known as the Liberty Coin Act, requires a silver coin of one troy ounce, .999 fine, with a Liberty design and an eagle. The face value is one dollar: it satisfies the statute. It does not measure the metal. The Gold Bullion Coin Act, Public Law 99-185, is later. On 17 December 1985 it authorizes the gold bullion coins, using gold from domestic mines.

On 1 October 1985 an executive order banned importation of the South African Krugerrand. The 1986 sanctions act confirmed that restriction. The gap in retail gold comes after the silver act, which was already signed in July. The 1986 program also includes the gold eagle. Platinum was first issued in 1997. Palladium was authorized in 2010 and first issued in 2017. This case is only the silver ounce.

Walking Liberty and the two reverses

The obverse returns to Adolph A. Weinman’s Walking Liberty, the half dollar of 1916 to 1947. Liberty strides toward the sun, wrapped in the flag. Her right arm is extended. Her left carries laurel and oak. In 2021, at the program’s 35th year, the Mint brought that obverse closer to Weinman’s model and added his artist’s mark, AAW. The earlier obverse does not carry it.

The reverse has two types, and 2021 struck both. Type 1, by John Mercanti, runs from 1986 to 2021: a heraldic eagle behind a shield, with an olive branch and a bundle of arrows. His initials, JM, are on the coin. Type 2 enters in mid-2021. Emily Damstra designed it and Michael Gaudioso sculpted it: an eagle coming in to land with an oak branch, as if to add it to a nest. The reverse legends remain UNITED STATES OF AMERICA, E PLURIBUS UNUM, 1 OZ. FINE SILVER, and ONE DOLLAR.

Bullion, proof, and burnished

The bullion piece is struck for the metal market. It carries no mint mark, whether it comes from West Point, San Francisco, or Philadelphia. The Mint does not sell it in the public store: it leaves through the authorized-purchaser network. The proof is a collector coin. Polished dies strike the planchet more than once, and the coin bears a mint mark. The Mint’s current page describes the proof with a West Point W. In other years the mark has been S or P. The satin finish, which the trade calls burnished, was introduced in 2006, usually bears a W, and is not struck every year. Some years add an enhanced uncirculated or a reverse proof. Each coin’s record will name the finish and the mark that piece actually carries.

The Mint publishes more than 500 million troy ounces sold since 1986. That figure is the Mint’s. It is not a count of this collection, and this page does not publish premiums or over-the-counter prices.

The 500-coin box and the mint that is not on the coin

Bullion leaves in a green box of 500 pieces: 25 tubes of 20. Because the planchet has no mint mark, the house that struck it is not on the metal. Grading services have reconstructed it when the box arrives still sealed and the strap number identifies the origin. If the seal is opened first, that reading is gone. A slab that says “struck at Philadelphia” documents the box, not a letter on the coin.

In 2015, when West Point was short of planchets, part of the bullion striking came from Philadelphia. Those pieces have no mint mark. In April 2020 West Point paused, and Philadelphia struck investment ounces so the supply would not stop. They have no mint mark either. Published counts of those two runs do not agree, so this page does not fix a mintage. If a piece comes from one of those boxes, its record will say what the slab attributes and what cannot be read on the edge.

Type specifications

Weight, diameter, fineness, face value, and the reeded edge are the United States Mint’s figures for the silver ounce. Thickness is Numista’s measurement of the type, not a caliper reading of a piece in this case. This page does not publish prices.

Type specifications
Attribute Published figure
Face value $1
Weight 31.103 g (1 troy ounce)
Fineness .999 fine silver
Diameter 40.6 mm
Thickness 2.98 mm (Numista)
Edge Reeded; from 2021, with a variation
Obverse Walking Liberty, Adolph A. Weinman
Reverse, 1986–2021 Heraldic eagle, John Mercanti
Reverse, from 2021 Landing eagle, Emily Damstra; sculpted by Michael Gaudioso

Where the edge variation falls

From 2021 the edge stays reeded and carries a variation the Mint uses as a security device. Numista publishes where that variation sits on the Type 2, viewed from the obverse. It is not a reading of a coin in this case.

Where the edge variation falls
Year Place on the obverse
2021 Below the date (6 o’clock)
2022 Beside the rising sun (about 7:30)
2023 Near the Y of LIBERTY (3 o’clock)
2024 After the L of LIBERTY (9 o’clock)
2025 Before the I of LIBERTY (10 o’clock)
2026 Before the B of LIBERTY (11 o’clock)

Dates that order the series

These dates separate the series: the first striking, the proof that came only in a set, the year with no proof, and the issues with a published limit. The figure is a mintage or a limit, not a price. Where the counts do not agree, the cell stays empty. This page does not publish prices.

Dates that order the series
Date Published figure What sets it apart
1986 5,393,005 First investment ounce. On 29 October 1986 it was struck at San Francisco, with Treasury Secretary James A. Baker III. Sales began on 24 November. It has no mint mark.
1986-S 1,446,778 First proof. It bears the San Francisco S.
1995-W 30,125 sets West Point proof. It was sold only in the five-coin set of the tenth anniversary.
1996 3,603,386 The lowest bullion sales among the years the table below numbers.
2000 75,000 sets Limit of the Millennium Coinage and Currency Set: a West Point investment ounce with no W, a Denver Sacagawea dollar, and a one-dollar note.
2009 30,459,000 Bullion only. On 6 October 2009 the Mint announced there would be no proof and no burnished coin that year.
2015 — Part of the bullion came from Philadelphia, with no mint mark. Counts of that run do not agree, so this page does not fix it. The year total is in the table below.
2019-W 110,000 sets West Point enhanced reverse proof, in the Pride of Two Nations set with the Royal Canadian Mint. Issue limit.
2019-S 30,000 (limit) San Francisco enhanced reverse proof, sold on its own, not the one in the Canadian set. Issue limit, not a final sales close.
2020 — In April Philadelphia struck investment ounces while West Point was closed. They have no mint mark. Counts of that run do not agree.
2020-W V75 75,000 (limit) Proof for the 75th anniversary of the end of the Second World War, with the V75 privy mark.
2021 125,000 sets Maximum for the two-coin reverse-proof set: Type 1 at West Point and Type 2 at San Francisco. That year also had bullion of both types; this page does not split it.
2026 — The year is still open. This page does not fix the mintage.

Bullion ounces by year

Each row is that year’s investment ounce: one coin, one troy ounce, no mint mark. The figure is the sale the United States Mint publishes to its authorized purchasers. It is not a proof, not a burnished piece, and not a count of this case. For 2012, 2013, and 2014 the facility-production chart the Mint released in 2017 counts more pieces struck than that year’s sales. This table does not use that chart. Where the published sales do not agree, the cell stays empty. 2026 is still open. This page does not publish prices.

Bullion ounces by year
Year Bullion sales Note
1986 5,393,005 All of that year’s production, at San Francisco.
1987 11,442,335 All of that year’s production, at San Francisco.
1988 5,004,646 San Francisco and West Point.
1989 5,203,327 San Francisco and West Point.
1990 5,840,110 San Francisco and West Point.
1991 7,191,066 San Francisco and West Point.
1992 5,540,068 San Francisco and West Point.
1993 6,763,762 San Francisco and West Point.
1994 4,227,319 San Francisco and West Point.
1995 4,672,051 San Francisco and West Point.
1996 3,603,386 San Francisco and West Point.
1997 4,295,004 San Francisco and West Point.
1998 4,847,549 San Francisco and West Point.
1999 7,408,640 West Point.
2000 9,239,132 West Point.
2001 9,001,711 West Point.
2002 10,539,026 West Point.
2003 8,495,008 West Point.
2004 8,882,754 West Point.
2005 8,891,025 West Point.
2006 10,676,522 West Point.
2007 9,028,036 West Point.
2008 20,583,000 West Point.
2009 30,459,000 West Point.
2010 34,764,500 West Point.
2011 40,020,000 West Point and San Francisco. Another table gives 39,860,500.
2012 33,742,500 That year’s sales. The 2017 facility chart counts more pieces struck.
2013 42,675,000 That year’s sales. The 2017 facility chart counts more pieces struck.
2014 44,006,000 That year’s sales. The 2017 facility chart counts more pieces struck.
2015 47,000,000 Year total. The Philadelphia portion is not split out.
2016 37,701,500 West Point, San Francisco, and Philadelphia.
2017 18,065,500 Bullion, no mint mark.
2018 15,700,000 Bullion, no mint mark.
2019 14,863,500 Bullion, no mint mark.
2020 — The published sales do not agree.
2021 28,275,000 Type 1 and Type 2, not split.
2022 15,963,500 Bullion, no mint mark.
2023 24,750,000 Bullion, no mint mark.
2024 — The year-end counts do not agree.
2025 11,568,000 Bullion. That year’s privy-mark issues are not in this figure.
2026 — The year is still open.

In this collection

One 1988 American Silver Eagle, bullion, with no mint mark and unslabbed. Open the record for obverse, reverse, and catalog facts. Further records — year, finish, and mint mark when there is one — will be published on this page.

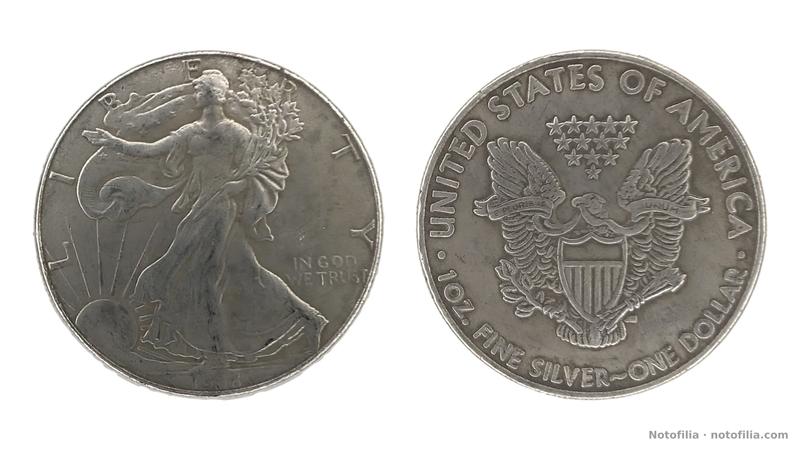

  1. Obverse: Weinman’s Walking Liberty; LIBERTY and IN GOD WE TRUST; weak date 1988.

    1 dollar · American Silver Eagle · 1988

    KM# 273 · PCGS# 9816 · Schön# 216 · N# 1493 · 1988

    Open the coin page →
